1.1kw 2bar Mini compressor Oil free scroll Oxygen generation oxygen production air compressor SG09ZY
1.1kw 2bar Mini compressor Oil free scroll Oxygen generation oxygen production air compressor SG09ZY
| Categories | Airend for Plateau Oxygen Generators |
|---|---|
| Brand | SCALA |
| Model | SG09ZY |
| Power | 1.1Kw |
| Air flow | 260L/min |
| Pressure | 0.2Mpa |
| RMP | 1500 |
| Voltage | AC 220/380V |
| Air inlet | G 3/4 |
| Air outlet | G 1/2 |
| Noise | <59dB(A) |
| Dimension | 350x243x243mm |
| Weight | 12kg |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Mar 12,2025 |
Detail Information

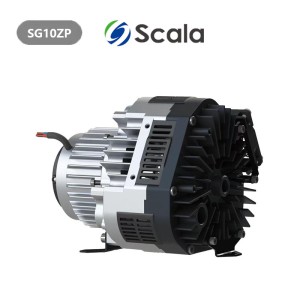

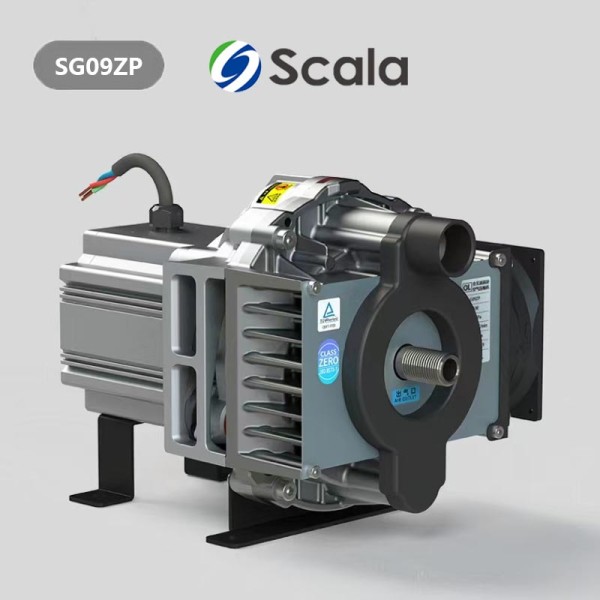

| Model | SG09ZP | SG09ZY | SG10ZP |
Moter Type | Permanent Magnet | Power Frequency | Permanent Magnet |
| Air Flow | 260m³/min | 260m³/min | 60m³/min |
| Presssure | 2.0 Bar | 2.0 Bar | 2.0 Bar |
| RPM | 1500 | 1500 | 1600 |
Power | 1100W | 1100W | 350W |
Voltage | AC 220/380V | AC 220/380V | DC 12/24V AC 220/380V |
Air Inlet | G 3/4 | G 3/4 | G 3/8 Female |
Air Outlet | G 1/2 | G 1/2 | G 1/4 Female |
Noise | <59dB(A) | <59dB(A) | <59dB(A) |
Working Temperature | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ |
Cooling Type | 220V Axial Fan | 220V Axial Fan | DC 24V / AC 220V Axial Fan |
Dimensions | 350x243x243mm | 350x243x243mm | 183x162x139mm |
Weight | 12kg | 12kg | 4kg |
