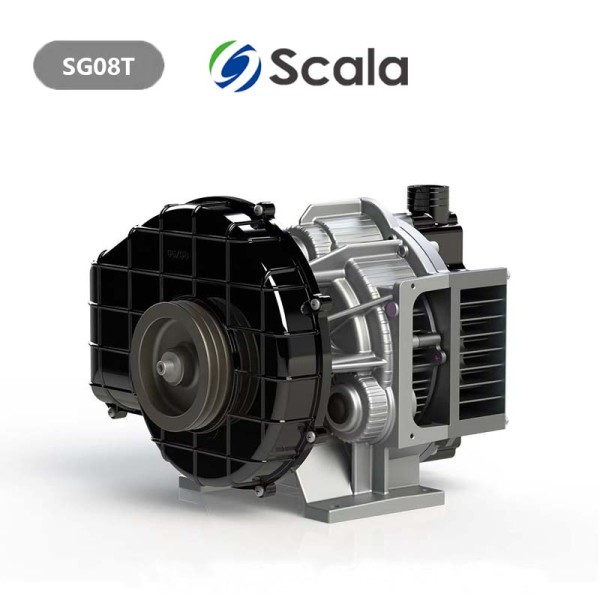

7.5kw 10HP 8bar 10bar Oil Free Scroll air End for Iwata Hitachi Atlas Scroll air Compressor Replace Belt-driven SG08T
7.5kw 10HP 8bar 10bar Oil Free Scroll air End for Iwata Hitachi Atlas Scroll air Compressor Replace Belt-driven SG08T
| Categories | T-series Belt-driven Airend |
|---|---|
| Brand | SCALA |
| Model | SG08T |
| Power | 7.5Kw (10HP) |
| Air flow (0.8Mpa / 1.0Mpa) | 800 / 700 L/min |
| RPM (0.8Mpa / 1.0Mpa) | 3450 / 3000 |
| Outlet | G 1/2 |
| Dimensions | 460x405x354 mm |
| Weight | 32Kg |
| Color | Silver + Black |
| Warranty | 1 Year |
| Place of origin | Zhejiang, China |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Mar 12,2025 |
Detail Information
| Model | Power kW (HP) | Pressure Mpa | RPM | Air Flow L/min | Outlet | Dimension mm | Weight Kg |

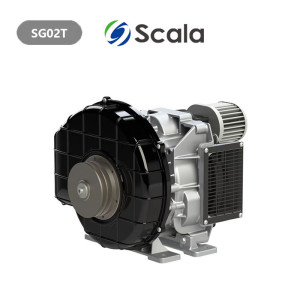

SG02T | 3 (4) | 0.8 | 3000 | 300 | Rp 3/8 | 404x330x292 | 16 |
1.0 | 2700 | 260 | |||||
SG03T | 2.2 (3) | 0.8 | 2700 | 240 | Rp 3/8 | 414x325x293 | 15 |
1.0 | 2400 | 200 | |||||
SG04T | 3 (4) | 0.4 | 2850 | 440 | Rp 3/8 | 345x289x263 | 16 |
SG05T | 3.7 (5) | 0.8 | 3000 | 400 | Rp 3/8 | 446x341x311 | 23 |
1.0 | 2800 | 350 | |||||
SG06T | 5.5 (7.5) | 0.8 | 3150 | 600 | G 1/2 | 445x406x365 | 29 |
1.0 | 2800 | 505 | |||||
SG07T | 5.5 (7.5) | 0.4 | 2800 | 1000 | G 3/4 | 434x406x365 | 30 |
SG08T | 7.5 (10) | 0.8 | 3450 | 800 | G 1/2 | 460x405x354 | 32 |
1.0 | 3000 | 700 |
