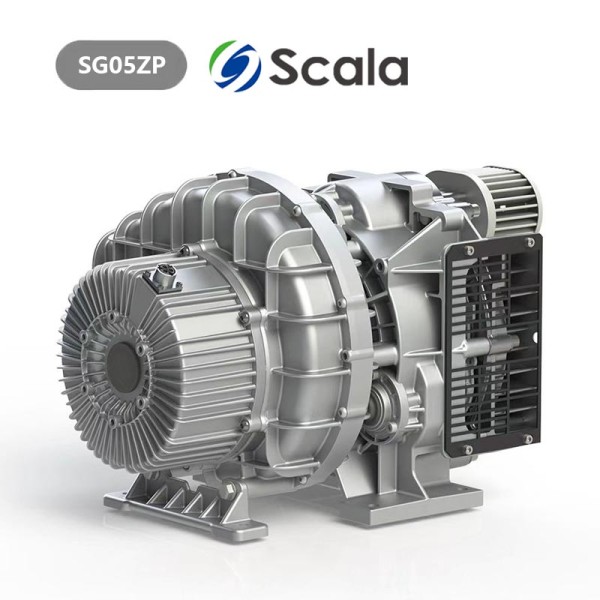

3.7kw 5HP 8bar 10bar Oil Free Scroll air End for Iwata Hitachi Atlas Scroll air Compressor Replace
3.7kw 5HP 8bar 10bar Oil Free Scroll air End for Iwata Hitachi Atlas Scroll air Compressor Replace
| Categories | ZP series Permanent Magnet Airend |
|---|---|
| Brand | SCALA |
| Model | SG05ZP |
| Power | 3.7Kw (5HP) |
| Air flow (0.8Mpa / 1.0Mpa) | 400/350 L/min |
| RPM (0.8Mpa / 1.0Mpa) | 3000 / 2800 |
| Outlet | Rp 3/8 |
| Dimensions | 500x355x312 mm |
| Weight | 36Kg |
| Color | Silver |
| Warranty | 1 Year |
| Place of origin | Zhejiang, China |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Mar 13,2025 |
Detail Information
| Model | Power kW (HP) | Pressure Mpa | RPM | Air Flow L/min | Outlet | Dimension mm | Weight Kg |
SG02ZP | 3 (4) | 0.8 | 3000 | 300 | Rp 3/8 | 449x325x292 | 25 |
1.0 | 2700 | 260 | |||||
SG03ZP | 2.2 (3) | 0.8 | 2700 | 240 | Rp 3/8 | 434x325x287 | 22 |
1.0 | 2400 | 200 | |||||
SG04ZP | 3 (4) | 0.4 | 2850 | 440 | Rp 3/8 | 345x289x263 | 25 |
SG05ZP | 3.7 (5) | 0.8 | 3000 | 400 | Rp 3/8 | 500x355x312 | 36 |
1.0 | 2800 | 350 | |||||
SG06ZP | 5.5 (7.5) | 0.8 | 3150 | 600 | G 1/2 | 500x387x343 | 42 |
1.0 | 2800 | 505 | |||||
SG07ZP | 5.5 (7.5) | 0.4 | 2800 | 1000 | G 3/4 | 484x389x365 | 43 |
SG08ZP | 5.5 (7.5) | 0.8 | 3400 | 800 | G 1/2 | 530x386x342 | 45 |
1.0 | 3000 | 700 |
