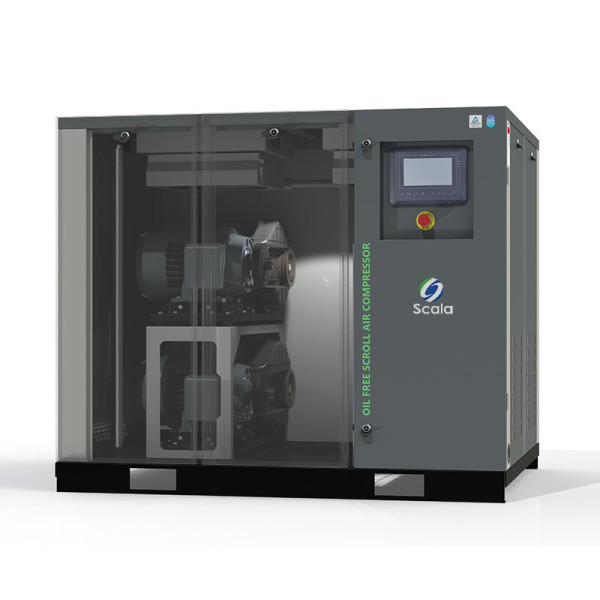

5/10/15/20hp 3.7/7.5/11/15kw Permanent Magnet Oil Free Scroll Air Compresor Intelligent Control Unit 8 Barg 10 Barg
5/10/15/20hp 3.7/7.5/11/15kw Permanent Magnet Oil Free Scroll Air Compresor Intelligent Control Unit 8 Barg 10 Barg
| Categories | Permanent Magnet Scroll Compressor |
|---|---|
| Brand | SCALA |
| Model | SKL05Z-P-8/10 |
| Color | Black |
| Electricity | AC 380V 50Hz |
| Pressure | 8/10 Barg |
| Air Flow | 0.4~1.6m³/min |
| Tank Capacity | NA |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Feb 23,2025 |
Detail Information
| Model | SKL05Z-P37-8 | SKL05Z-P75-8 | SKL05Z-P110-8 | SKL05Z-P150-8 |
| Power | 3.7Kw | 7.5 (3.7x2) Kw | 11 (3.7x3) Kw | 15 (3.7x4) Kw |
| Horse Power | 5HP | 10HP | 15HP | 20HP |
| Electricity | AC 220V/380V 50Hz | |||
Control | via Pressure Sensor | |||
Pressure | 0.8Mpa | |||
Air Flow | 0.4m³/min | 0.8m³/min | 1.2m³/min | 1.6m³/min |
Tank Capacity | NA | |||
Air Outlet | G 1/2'' | G 1'' | G 1'' | G 1'' |
Dimensions (mm) | 800x550x880 | 1100x700x1130 | 1100x700x1500 | 1300x830x1260 |
Weight | 140Kg | 243Kg | 430Kg | 416Kg |
Noise | 63dB(A) | 63dB(A) | 64dB(A) | 66dB(A) |
Notes:
1. Corresponding models with 1.0Mpa discharge pressure are available on request, correction factor of air flow is 0.85.
2. AC 220V/1Ph/50Hz are available on request.
