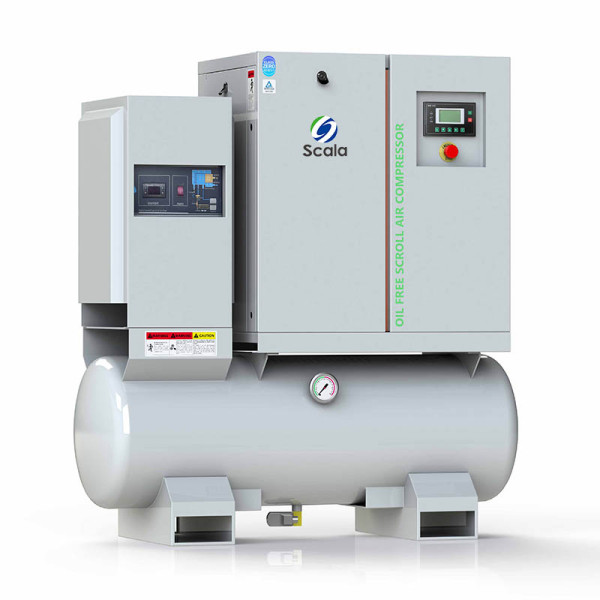

3/5/7.5/10/15hp 2.2/5/3.7/5.5/11kw Oil Free All-in-one Scroll Air Compresor Permanent Magnet w/ Refrigerated Dryer w/ Receiver Tank
3/5/7.5/10/15hp 2.2/5/3.7/5.5/11kw Oil Free All-in-one Scroll Air Compresor Permanent Magnet w/ Refrigerated Dryer w/ Receiver Tank
| Categories | Permanent Magnet Scroll Compressor |
|---|---|
| Brand | SCALA |
| Model | SKLZ-P-8LR |
| Color | Beige |
| Electricity | AC 380V 50Hz |
| Pressure | 8/10 Barg |
| Air Flow | 0.22~1.14m³/min |
| Tank Capacity | 200L/300L |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Feb 23,2025 |
Detail Information
| Model | SKL03Z-P22-8LR | SKL05Z-P37-8LR | SKL06Z-P55-8LR | SKL05Z-P75-8LR | SKL06Z-P110-8LR |
| Power | 2.2 | 3.7 | 5.5 | 7.5 | 11 |
| Horse Power | 3 | 3 | 7.5 | 10 | 15 |
| Electricity | AC 380V/3PH/50Hz | ||||
Control | via Pressure Sensor | ||||
Pressure | 0.8Mpa | ||||
Air Flow | 0.22 | 0.38 | 0.57 | 0.76 | 1.14 |
Dew Point | -15℃ | ||||
Tank Capacity | 200L | 200L | 200L | 300L | 300L |
Air Outlet | G 3/4'' | G 3/4'' | G 3/4'' | G 1'' | G 1'' |
Dimensions | 1320 x 550 x (H)1550mm | 1660 x 700 x (H)1810mm | |||
Weight | 225Kg | 240Kg | 245Kg | 371Kg | 414Kg |
Noise | 62dB(A) | 63dB(A) | 65dB(A) | 65dB(A) | 65dB(A) |
Notes:
1. Corresponding model with 1.0Mpa discharge pressure are available on request.
2. Compatible desiccant dryers are available for both 0.8Mpa & 1.0Mpa models.
3. All models are equipped with auto-drain.
