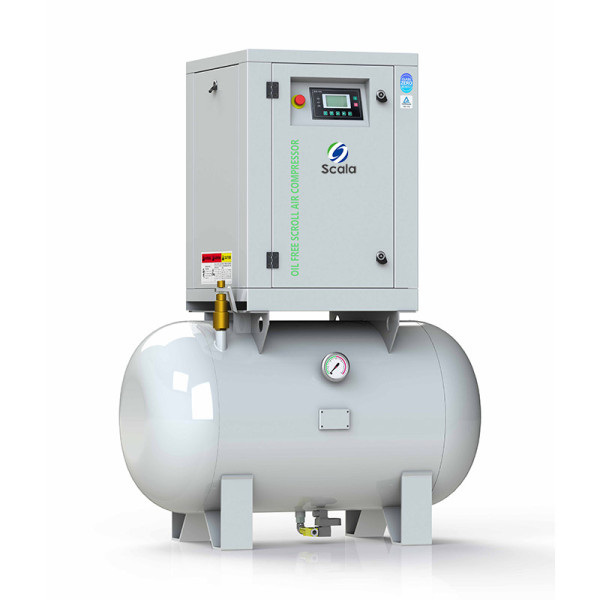

2.2kw 3.0kw 3.7kw Oil Free Air Compressor with Receiver Tank Mini Scroll Air Compressor Power Frequency Belt Driven
2.2kw 3.0kw 3.7kw Oil Free Air Compressor with Receiver Tank Mini Scroll Air Compressor Power Frequency Belt Driven
| Categories | Belt-driven Scroll Compressor |
|---|---|
| Brand | SCALA |
| Model | SKL03/02/05T-Y22/30/37-8/10XC |
| Color | Beige |
| Electricity | AC 220V/380V 50Hz |
| Pressure | 8/10 bar |
| Air Flow | 0.2-0.4m³/min |
| Tank Capacity | 120L |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Feb 23,2025 |
Detail Information
| Model | SKL03T-Y22-8XC | SKL02T-Y30-8XC | SKL05T-Y37-8XC | SKL03T-Y22-10XC | SKL02T-Y30-10XC | SKL05T-Y37-10XC |
| Pressure | 0.8Mpa | 1.0Mpa | ||||
| Air Flow | 0.24m³/min | 0.3m³/min | 0.4m³/min | 0.20m³/min | 0.26m³/min | 0.35m³/min |
| Power | 2.2Kw (3HP) | 3.0Kw (4.0HP) | 3.7Kw (5.0HP) | 2.2Kw (3HP) | 3.0Kw (4.0HP) | 3.7Kw (5.0HP) |
Electricity | AC 220V/380V 50Hz | |||||
Receive Tank | 120Liters | |||||
Air Outlet | G 1/2 | |||||
Dimensions | 800x600xH1365mm | |||||
Weight | 160Kg | 163Kg | 172Kg | 160Kg | 163Kg | 172Kg |
Noise | 65dB(A) | 65dB(A) | ||||
