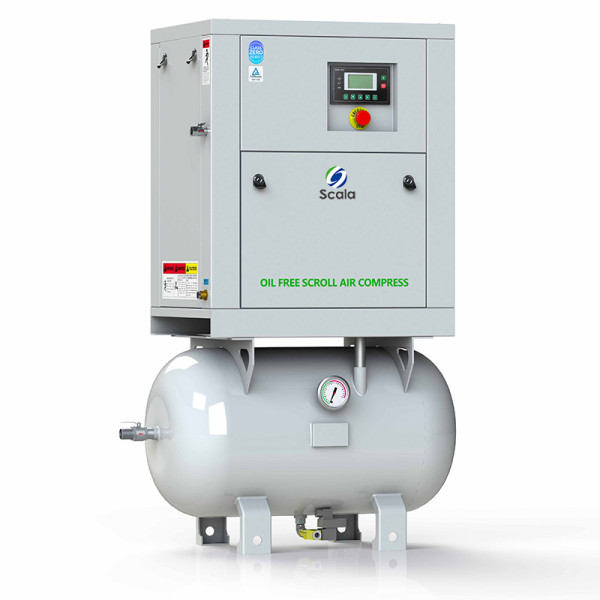

2.2kw 3.0kw 4.0kw Oil Free Air Compressor Receiver Tank Mini Scroll Air Compressor Permanent Magnet
2.2kw 3.0kw 4.0kw Oil Free Air Compressor Receiver Tank Mini Scroll Air Compressor Permanent Magnet
| Categories | Permanent Magnet Scroll Compressor |
|---|---|
| Brand | SCALA |
| Model | SKL03/02/05Z-P22/30/40-8/10SC |
| Color | Beige |
| Electricity | AC 220V/380V 50Hz |
| Pressure | 8/10 bar |
| Air Flow | 0.2-0.4m³/min |
| Tank Capacity | 120L |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Feb 23,2025 |
Detail Information
| Model | SKL03Z-P22-8SC | SKL02Z-P30-8SC | SKL05Z-P40-8SC | SKL03Z-P22-10SC | SKL02Z-P30-10SC | SKL05Z-P40-10SC |
| Pressure | 0.8Mpa | 1.0Mpa | ||||
| Air Flow | 0.24m³/min | 0.3m³/min | 0.4m³/min | 0.20m³/min | 0.26m³/min | 0.35m³/min |
| Power | 2.2Kw (3HP) | 3.0Kw (4.0HP) | 4.0Kw (5.5HP) | 2.2Kw (3HP) | 3.0Kw (4.0HP) | 4.0Kw (5.5HP) |
Electricity | AC 220V/380V 50Hz | |||||
Control Type | Via Pressure Sensor | |||||
Receivr Tank | 120 Liters | |||||
Air Outlet | G 1/2 | |||||
Dimensions | 800x600xH1390mm | |||||
Weight | 143Kg | 146Kg | 174Kg | 143Kg | 146Kg | 174Kg |
Noise | 62dB(A) | 65dB(A) | 65dB(A) | 62dB(A) | 65dB(A) | 65dB(A) |
